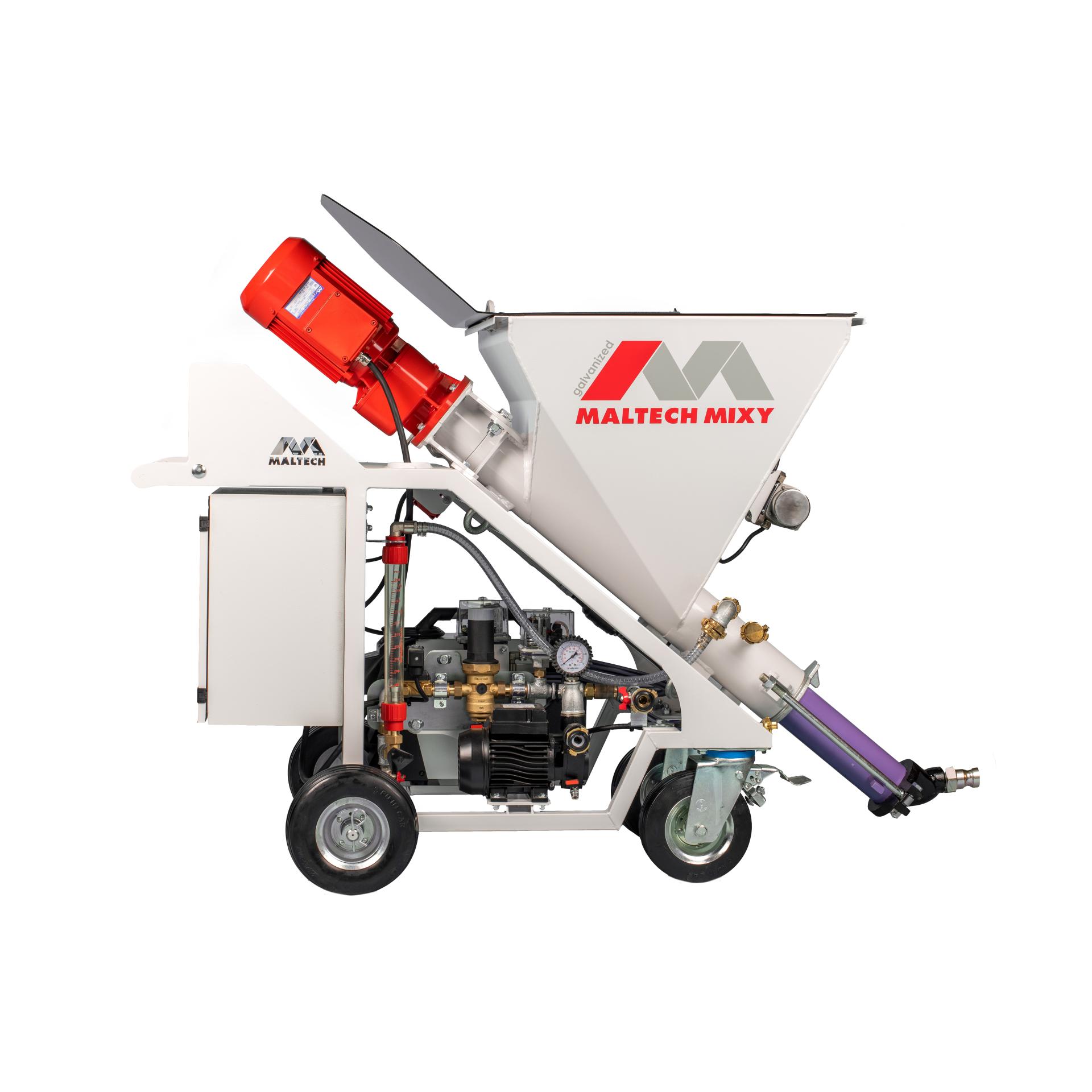

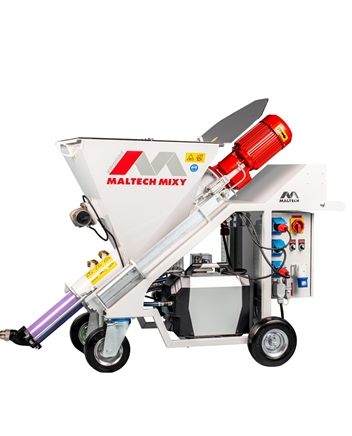

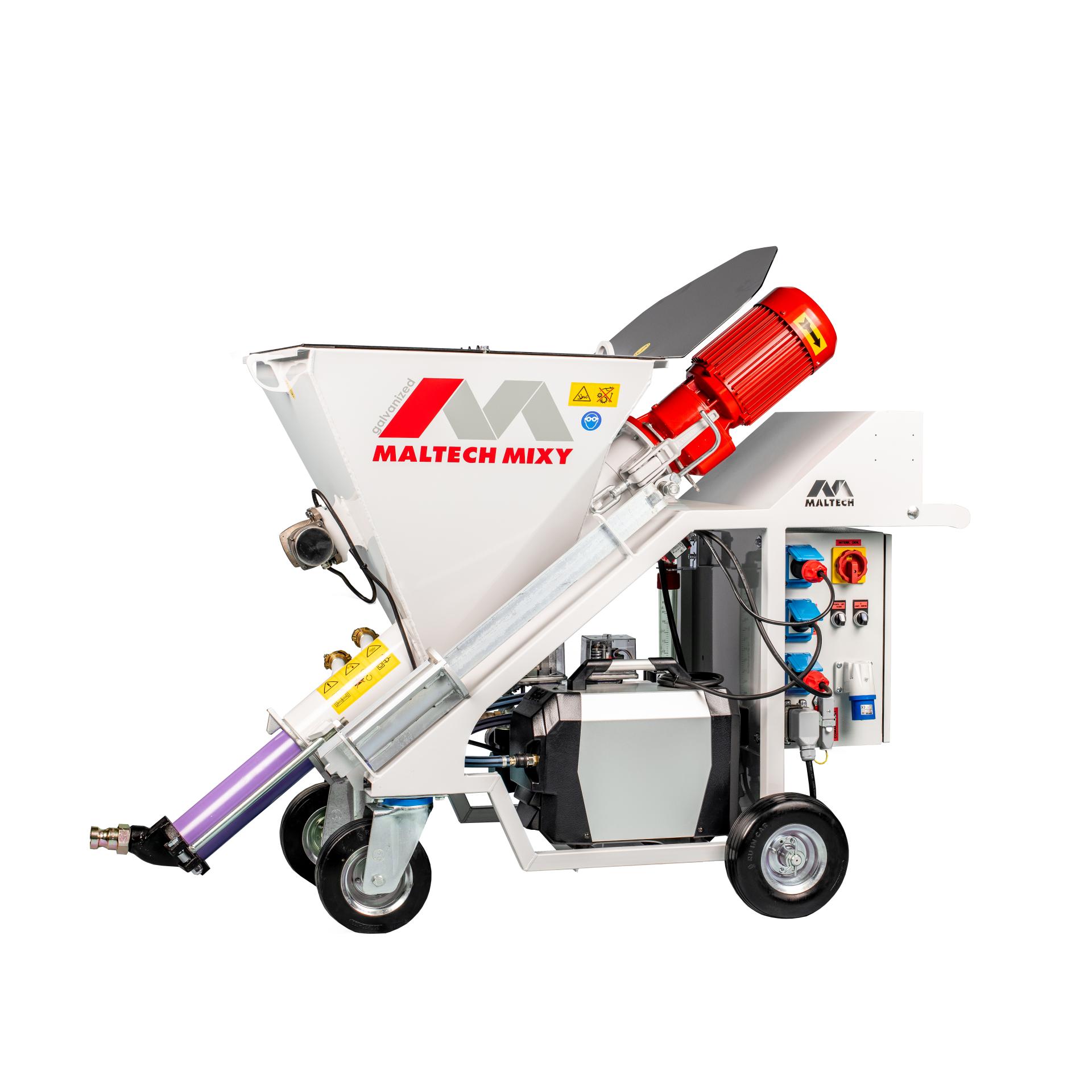

Mixy

The efficient plastering machine for renovation works

Mixy, Maltech’s rational plastering machine, is employed for rehab and renovation works, indoors and outdoors, for processing glue, insulating plaster, flow screed, indoor and outdoor plaster. Rehab and renovating with high-quality components: Mixy is a flexible all-round plastering machine.

Facts
Plastering machine for renovation, small and large construction sites

Innovation
Single phase operation 2.2 – 3.0 kW

Features

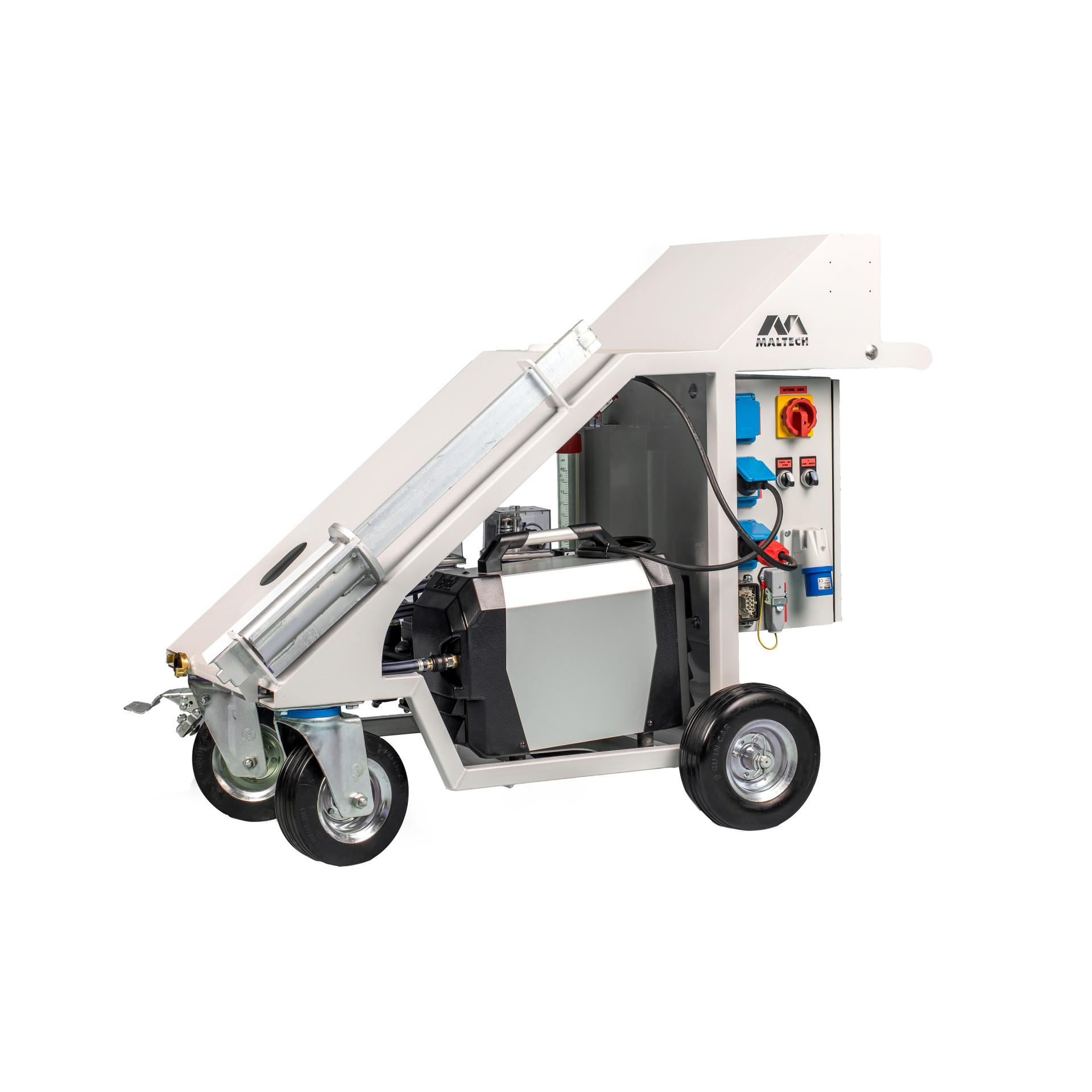

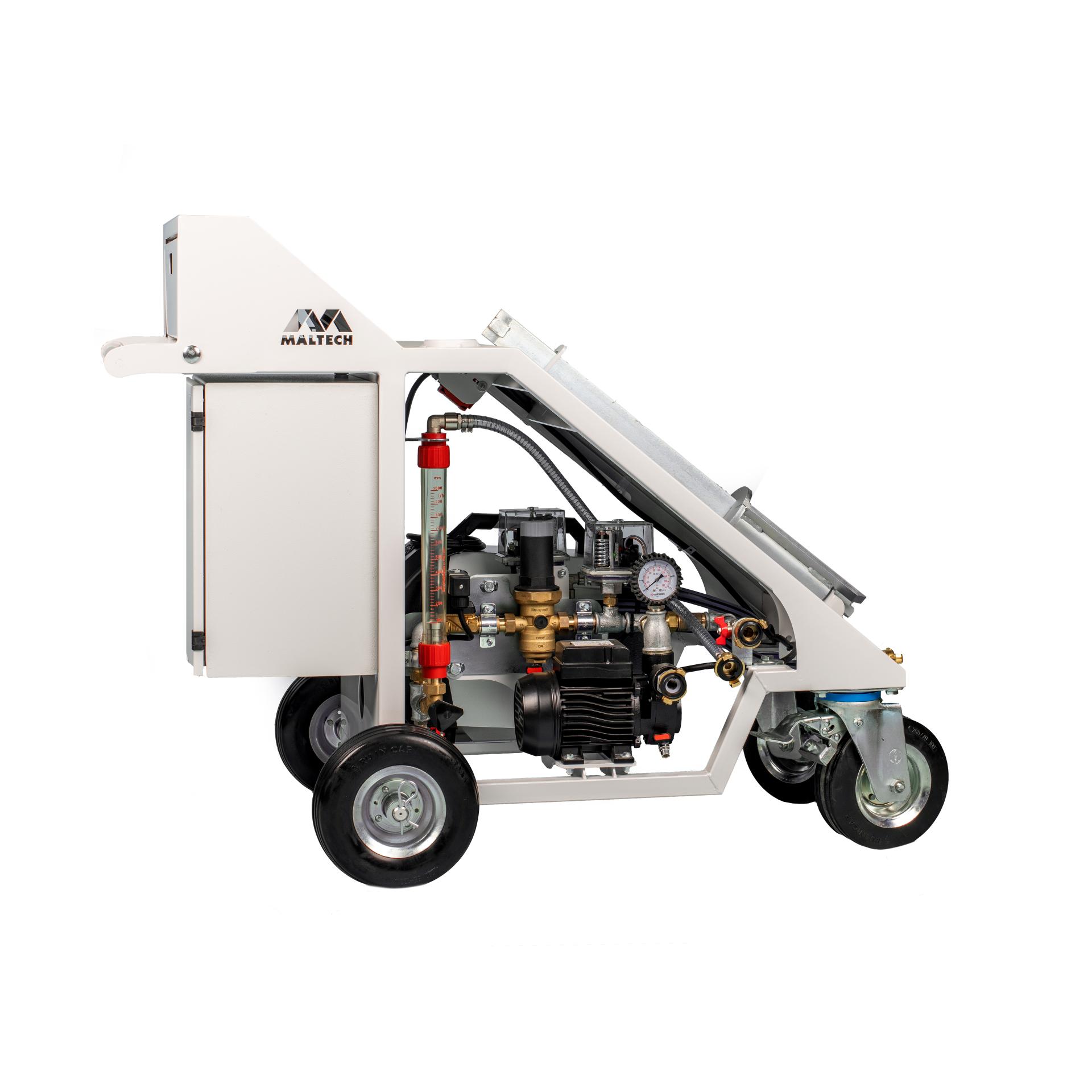

  • Galvanised and powder-coated frame
  • For indoor and outdoor works
  • Processing glue, insulating plaster, flow screed, indoor and outdoor plaster
  • Light weight, easy to assemble and dismount
  • High-quality components
  • Single phase operation with condenser (230V – 2.2 kW) or frequency inverter (230 V – 3.0 kW)
  • Frequency inverter for more power in single phase mode
  • Frame fitted with 4 wheels for increased flexibility
Conveying capacity*  approx. 16 l/min
Max range*  approx. 10 l/min

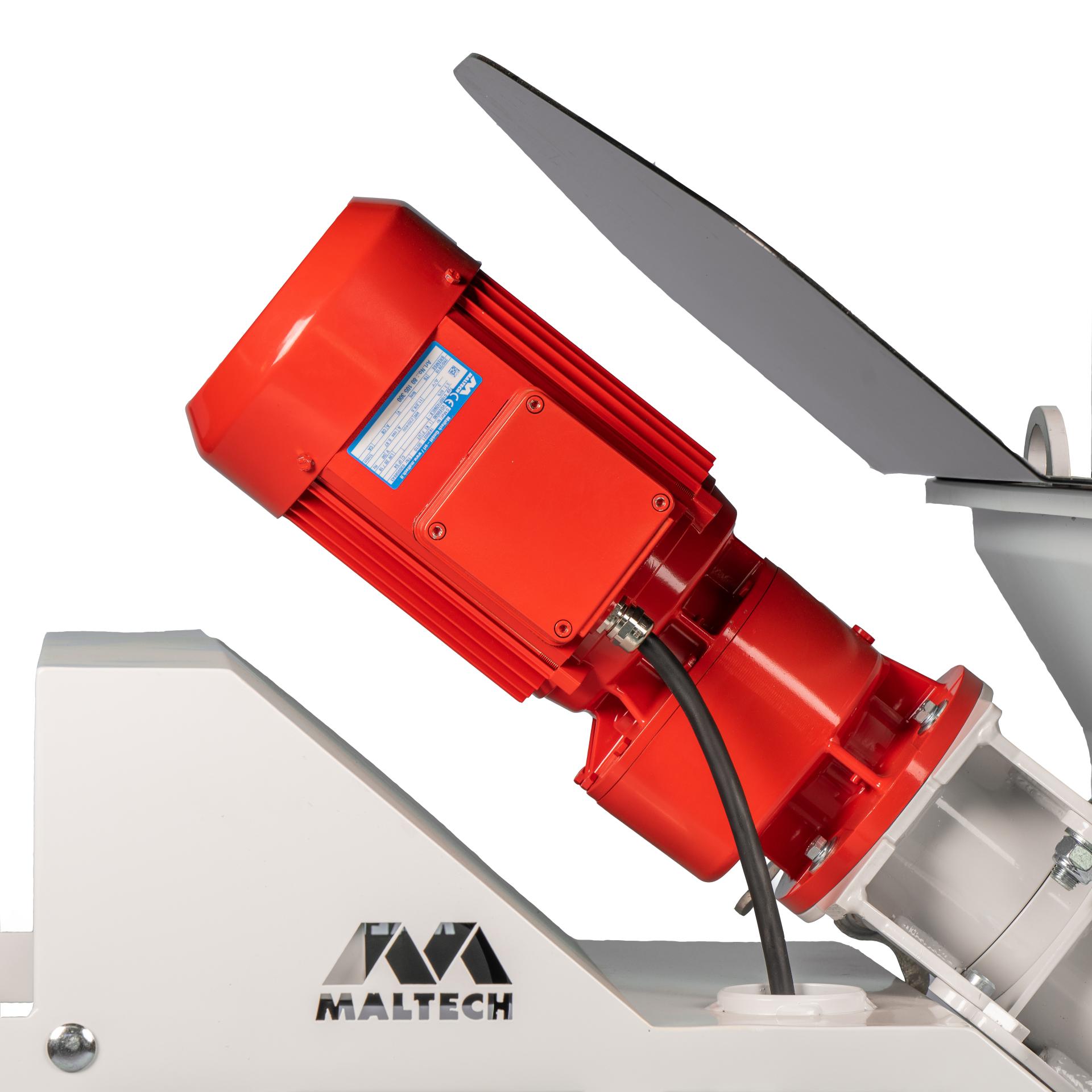

Gear motor Mixy  2.2 kW 230 V 50 Hz
Gear motor Mixy FU  3.0 kW 230 V 50 Hz
Compressor capacity  180 l/min
Transport pressure  approx. 15 bar

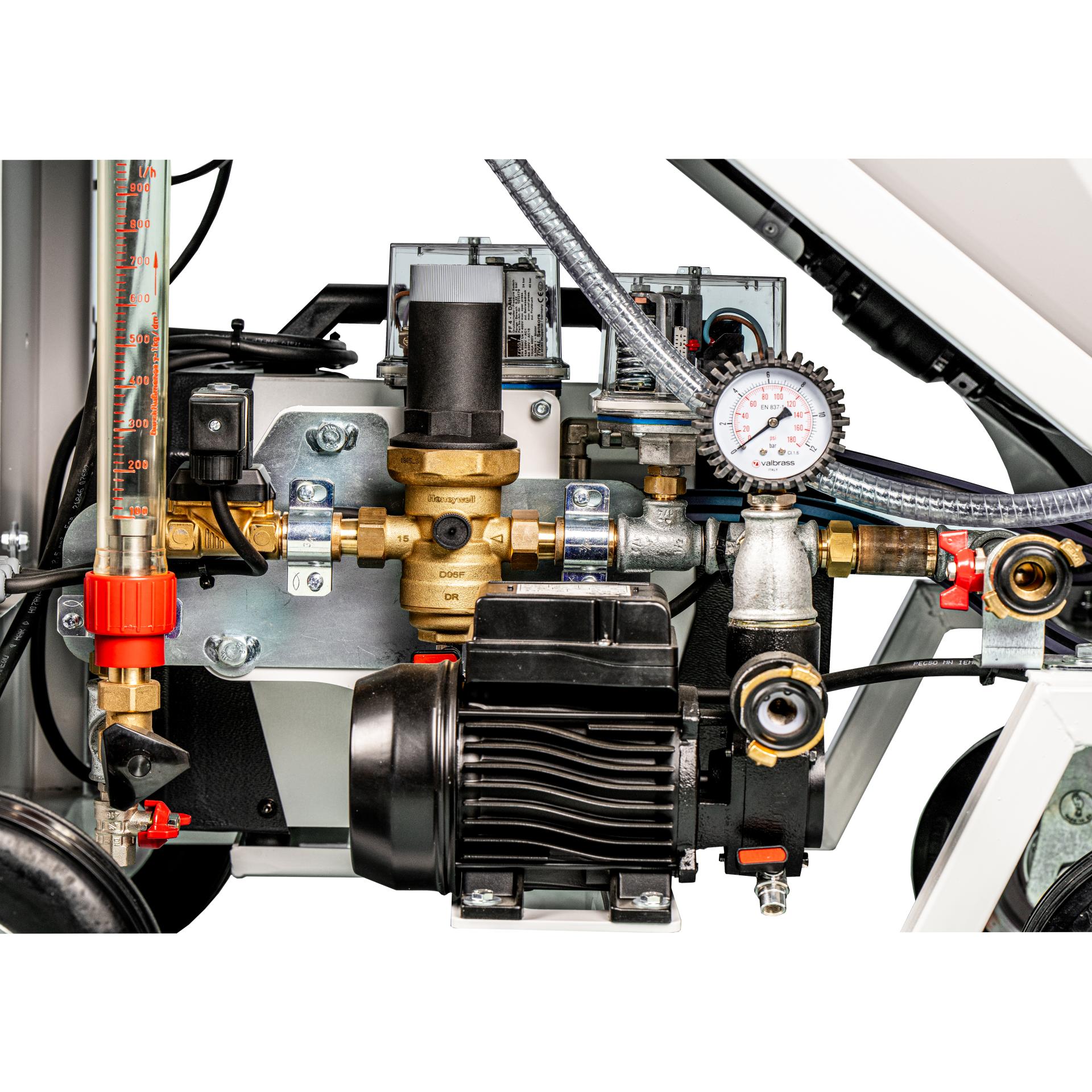

Min water pressure  3 bar
Electrical drive  42 V

*Approximate values that may vary according to type and consistency of the material in use.
Width
600 mm
Length
1640 mm
Height
1190 mm

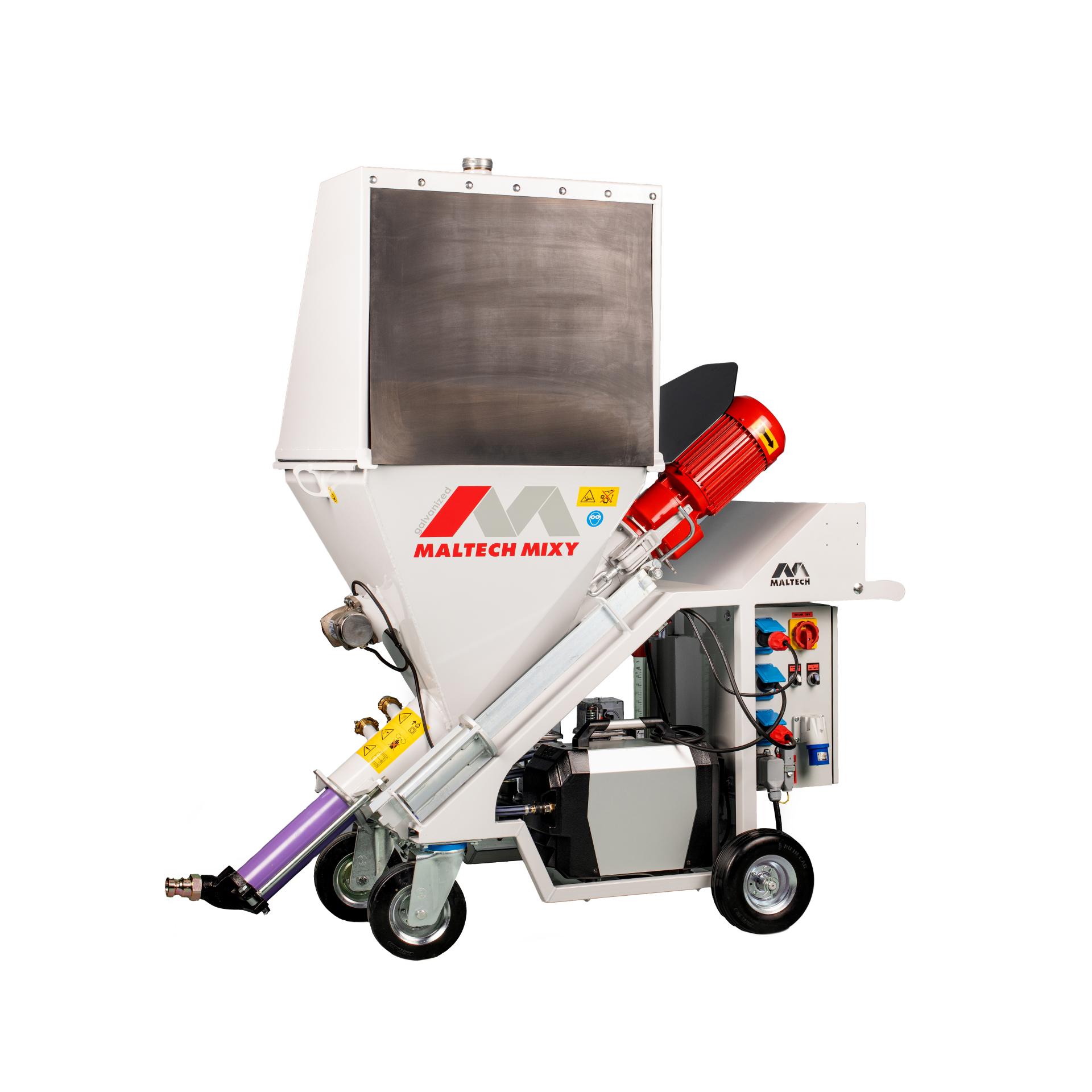

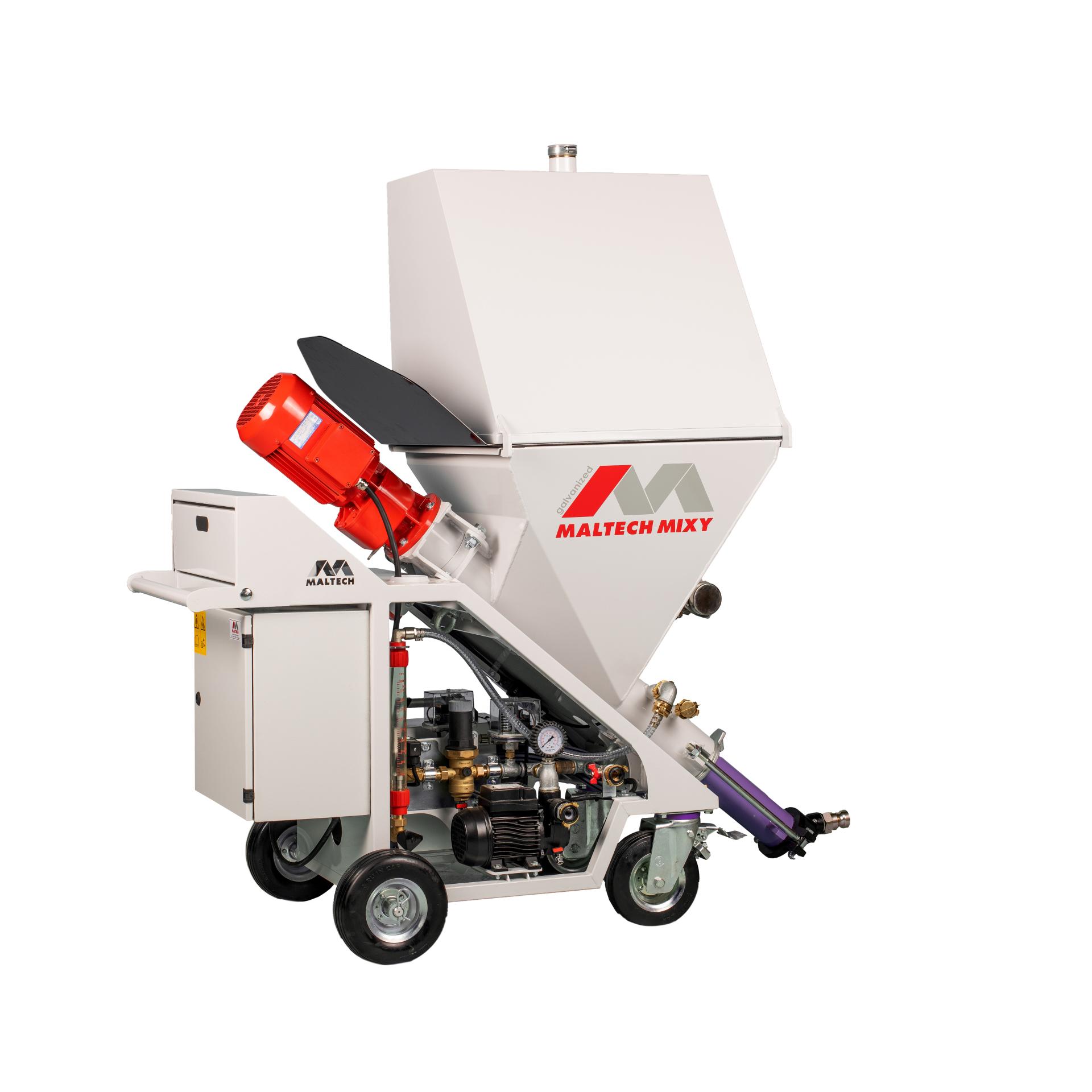

Height of opening
1010 mm
Total weight
202 kg

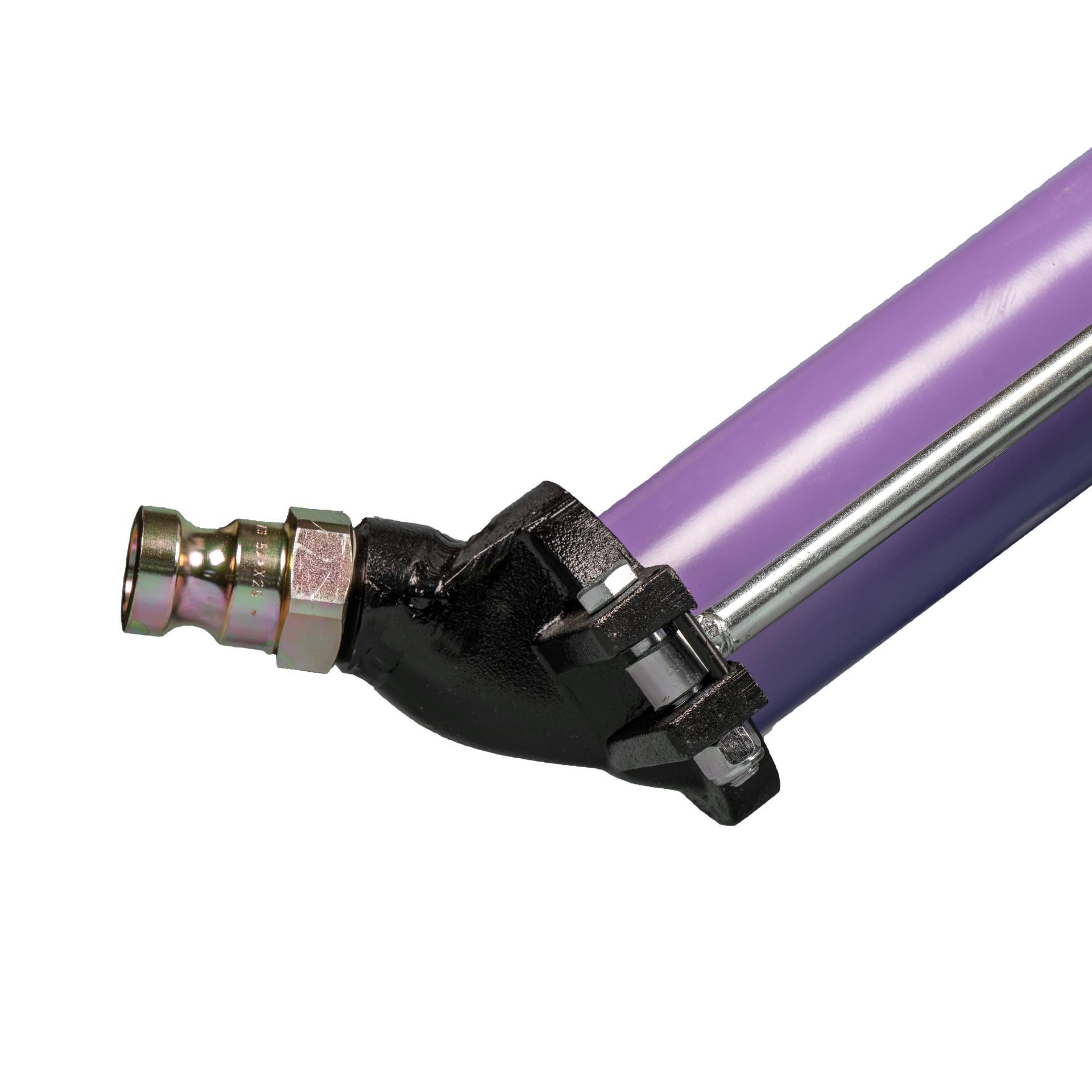

 Screw pump set  D4 ECO
Screw pump set  DN25, 10 m, 40 bar
Air hose ½′′
 10 m
Spray gun
 DN25
Tool kit


loader
